Unique SurroundVideo®
8-megapixel network cameras deliver full motion 180° or
360° panoramas.
Compact 6” dome design incorporates four 2 megapixel
sensors, dramatically reducing total
installation cost.HIGH
RESOLUTION & FULL MOTION

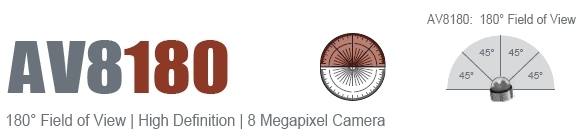

AV8180 and AV8360 network cameras
leverage proprietary massively-parallel image processing
technologies SurroundVideo® and MegaVideo® and deliver
full motion, progressive scan panoramic video over four
1600x1200 channels at 22 fps.
COST EFFICIENCY
High resolution and crystal clear
imagery allow a single SurroundVideo® camera to replace
up to 24 analog cameras, substantially reducing the

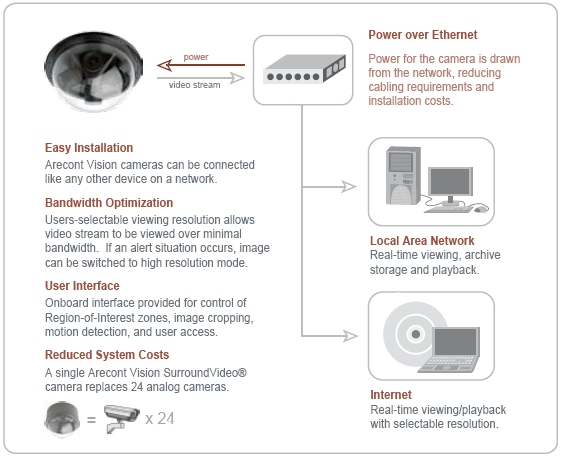

total cost of installation. Compact 6” dome has a single
external cable that carries both power and video using
Power-over-Ethernet (POE) technology.
NO- MOVING-PARTS INSTANTANEOUS
180° OR 360° PAN TILT ZOOM (PTZ)

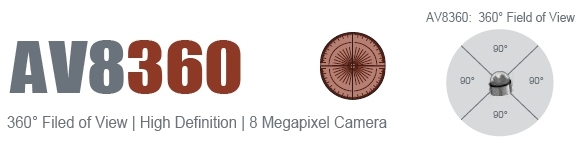

Super high resolution of AV8360
and AV8180 allows efficient no-moving-parts zoom windows
to be instantly re-positioned across the entire
panorama. These zoom windows are delivered as separate
video streams simultaneously with the complete full
field of view panoramic video, thus eliminating the
trade-off between magnification and area coverage as
well as avoiding costly and unreliable
electro-mechanical PTZ.
FORENSIC ZOOMING
Playback of high-resolution
digital archives allows “zoom-after-event” on any object
in the field of view, eliminating the need for manned
installations.
EFFICIENT BANDWIDTH MANAGEMENT
Efficient bandwidth utilization is
supported via user-selectable regions of interest (ROI).
The reduction of overall storage and bandwidth
requirements may be achieved by selecting up to 4
regions of interest with independent control of
resolution and compression quality for each of the
selected regions. |
