High Definition CCTV Solutions
|
AV5100M
∙ 5
Mega pixel IP-camera sensitive to 0.3 lux @ F1.4
∙ Frame Rate 15 fps @ Resolution 2,560 x 1,600
The AV-5100M offers cinema compatible frame rates to
allow real time high definition digital video
surveillance with 15 times the resolution of the best
analog surveillance cameras.
|
 |
ULTRA HIGH RESOLUTION & FULL
MOTION: AV5100M network camera delivers full motion progressive
scan 2560 x 1600 video at 15 fps featuring massively-parallel
Mega Video®
image processing architecture capable of sustaining over 6
billion operations per second.

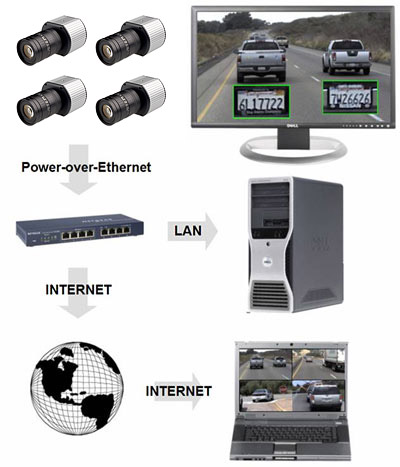

ULTRA COST EFFICIENCY: High resolution and crystal clear imagery
allows the AV5100 to substitute up to fifteen analog cameras;
thereby reducing the total cost of installation. No need to
supply a separate power source since the power can be drawn from
a low cost Power-over-Ethernet switch.
ULTRA FORENSIC ZOOMING: AV5100 surveillance system has the
ability to zoom after the event from high resolutions digital
archives and the simultaneous viewing of zoomed and full field
of view images.

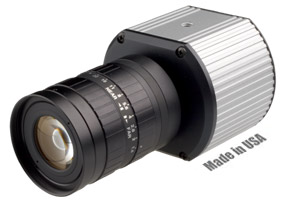

AV5100M Camera
Specification
|
Imaging
-
5 Megapixel CMOS Image
Sensor
-
2592(H) x 1944(V) pixel
array
-
½” optical format
-
2.2 µm pixel pitch
-
Bayer mosaic RGB filter
-
Sensitivity 0.3 lux @
F1.4
-
Dynamic Range 60 dB
-
Maximum SNR 41 dB
Data Transmission
-
Data Rate up to 55Mbps
-
Video Frame Rate up to
15 fps @ 2560x1600
-
Motion JPEG with 21
levels of quality
-
TFTP Transmission
Protocol
-
100Base-TX Ethernet
Network Interface
Programmability
-
Auto Exposure (AE) and
Gain Control (AGC) >120dB
-
Auto Backlight
Compensation
-
Auto Multi-Matrix White
Balance
-
50/60Hz selectable
Flicker Control
-
Electronic Zoom, Pan &
Tilt (PTZ)
-
Electronic Image
Rotation - up-side down image turn (mirror)
-
Resolution windowing
down to 32x32 pixels window
-
Programmable Motion
Blurring Control for Low-Light Mode
-
Programmable
Resolution, Brightness, Saturation, Gamma,
Sharpness, Tint
-
Picture-In-Picture:
Simultaneous delivery of full field of view and
zoomed images
|
 |
|
Electrical
-
Power over Ethernet
(POE) or DC Input
-
Compatible with IEEE
802.3af POE equipment
-
9V – 12VDC (2.1mm x
5.5mm, center positive)
-
Power Consumption 5
Watts maximum
Regulatory Approvals
-
FCC Part 15, Class B
-
CE compliant
Mechanical
Environmental
-
Operating Temperature 0°C
to +50°C
-
Storage Temperature -20°C
to +60°C
-
Humidity 0% to 90% (non
condensing)
|
 |
We
reserves the right to change products or specifications without
notice.
|
