AV3130M

  ∙  Sensitivity from 0.01 lux to 100,000 lux
  ∙  Frame Rate 20 fps @ Resolution 1,920 x 1,200

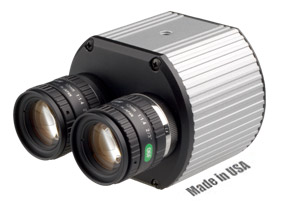

Multi-sensor DayNight™ AV3130M, the newest addition to Arecont Vision MegaVideo™ product line, leverages proprietary patent-pending technology and alleviates the cost and sensitivity shortcomings associated with multi-megapixel video surveillance

- ULTRA HIGH RESOLUTION & FULL MOTION: AV3130 network camera delivers full motion progressive scan 1920 x 1200 video at 20 fps featuring massively-parallel MegaVideo™ image processing architecture capable of sustaining over 6 billion operations per second.

- SUPERIOR ILLUMINATION RANGE & SENSITIVITY: While sophisticated conventional cameras improve low-light sensitivity by mechanically removing the IR filter, the AV3130 uses DualBand™ technology that seamlessly switches to optimized monochrome sensor in low light, avoiding sensitivity drop-off due to color filters and small pixels and accommodating 10,000,000:1 range of scene illuminations, from bright sunlight to cloudy moonlight.

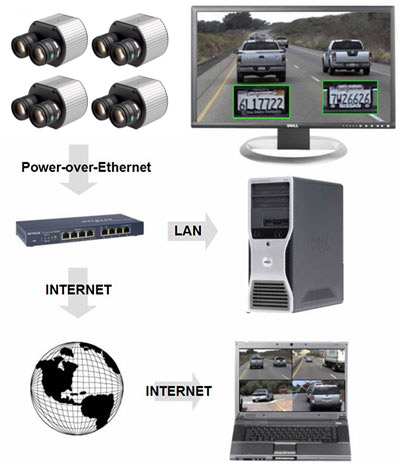

- GREAT COST EFFICIENCY: Unique AV3130 architecture enables the delivery of HDTV resolution at NTSC price. Power-over-Ethernet capability of AV3130 allows the use of just one cable for both data and power transmission, greatly reducing installation costs. As a result the AV3130 represents cost-comparable but vastly superior alternative to analog video.

- EXCELLENT SYSTEM RELIABILITY & FUNCTIONALITY: AV3130 has no moving mechanical parts and is complemented by state-of-the art surveillance software capable of live image acquisition and display from multiple cameras, policy-based digital archiving and video redistribution across local and wide area networks.





AV2100 Camera Specification

Imaging

  • ˝” CMOS Image Sensors:
    - 3 Mpixel Color 2040(H) x 1530(V)
    - 1.3 Mpixel Monochrome 1280(H) x 1024(V)

  • Bayer mosaic RGB filter

  • Sensitivity 0.01 lux @ F1.4

  • Dynamic Range 60 dB

  • Maximum SNR 45 dB

Data Transmission

  • Data Rate up to 45Mbps

  • Video Frame Rate up to:
    - 20 fps @ 1920x1200
    - 30 fps @ 1280x1024

  • Motion JPEG with 22 levels of quality

  • TFTP Transmission Protocol

  • 100Base-TX Ethernet Network Interface

Programmability

  • Auto Day-Night switch from Monochrome to Color

  • Auto Exposure (AE) and Gain Control (AGC) >120dB

  • Auto Backlight Compensation

  • Auto Multi-Matrix White Balance

  • 50/60Hz selectable Flicker Control

  • Electronic Zoom, Pan & Tilt (PTZ)

  • Electronic Image Rotation - up-side down image turn (mirror)

  • Resolution windowing down to 32x32 pixels window

  • Programmable Motion Blurring Control for Low-Light Mode

  • Programmable Resolution, Brightness, Saturation, Gamma, Sharpness, Tint

  • Picture-In-Picture: Simultaneous delivery of full field of view and zoomed images



Electrical

  • Power over Ethernet (POE) or DC Input

  • Compatible with IEEE 802.3af POE equipment

  • 9V – 12VDC (2.1mm x 5.5mm, center positive)

  • Power Consumption 4.5 Watts maximum

Regulatory Approvals

  • FCC Part 15, Class B

  • CE compliant

Mechanical

  • 57W x 63.5H x 76D mm (w/o lens)

  • 450 grams (w/o lens)

Environmental

  • Operating Temperature 0°C to +50°C

  • Storage Temperature -20°C to +60°C

  • Humidity 0% to 90% (non condensing)

We reserves the right to change products or specifications without notice.
