High Definition CCTV Solutions
|
AV3100M
∙ 3 Mega
pixel IP-camera sensitive to 0.2 lux @ F1.4
∙ Frame Rate 22 fps @ Resolution 1,920 x 1,080
The AV-3100M offers cinema compatible frame rates to
allow real time high definition digital video
surveillance with 10 times the resolution of the best
analog surveillance cameras.
|
 |
One of the latest additions
to Arecont Vision MegaVideo™ product line, the AV3100 leverages
proprietary patent-pending technology and alleviates the cost
and frame rate shortcomings associated with multi-megapixel
video surveillance.

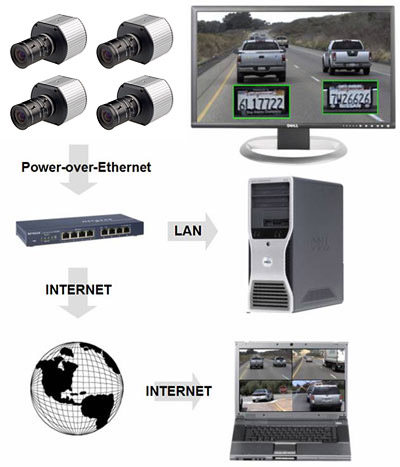

The AV3100M supports compliant Power-over-Ethernet (POE) and
auto-iris control functionality. The camera delivers full motion
HDTV progressive scan resolution and is priced comparably to
analog video cameras.
The world’s fastest IP-video systems from Arecont Vision are
based on proprietary massively-parallel MegaVideo™ technology
and take advantage of unique functionality unavailable with
analog cameras.

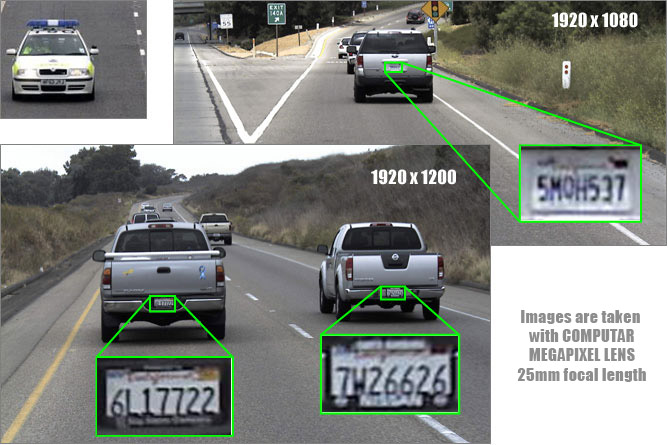

AV3100 surveillance system has the ability to zoom after the
event from high resolutions digital archives and the
simultaneous viewing of zoomed and full field of view images.

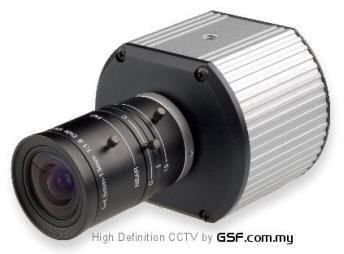

AV3100M Camera
Specification
|
Imaging
-
3 Megapixel CMOS Image
Sensor
-
2040(H) x 1530(V) pixel
array
-
˝” optical format
-
3.2 µm pixel pitch
-
Bayer mosaic RGB filter
-
Sensitivity 0.2 lux @
F1.4
-
Dynamic Range 60 dB
-
Maximum SNR 45 dB
Data Transmission
-
Data Rate up to 45Mbps
-
Video Frame Rate up to
20 fps @ 1920x1200
-
Motion JPEG with 22
levels of quality
-
TFTP Transmission
Protocol
-
100Base-TX Ethernet
Network Interface
Programmability
-
Auto Exposure (AE) and
Gain Control (AGC) >120dB
-
Auto Backlight
Compensation
-
Auto Multi-Matrix White
Balance
-
50/60Hz selectable
Flicker Control
-
Electronic Zoom, Pan &
Tilt (PTZ)
-
Electronic Image
Rotation - up-side down image turn (mirror)
-
Resolution windowing
down to 32x32 pixels window
-
Programmable Motion
Blurring Control for Low-Light Mode
-
Programmable
Resolution, Brightness, Saturation, Gamma,
Sharpness, Tint
-
Picture-In-Picture:
Simultaneous delivery of full field of view and
zoomed images
|
 |
|
Electrical
-
Power over Ethernet
(POE) or DC Input
-
Compatible with IEEE
802.3af POE equipment
-
9V – 12VDC (2.1mm x
5.5mm, center positive)
-
Power Consumption 4
Watts maximum
Regulatory Approvals
-
FCC Part 15, Class A
-
CE compliant
Mechanical
Environmental
-
Operating Temperature 0°C
to +50°C
-
Storage Temperature -20°C
to +60°C
-
Humidity 0% to 90% (non
condensing)
|
 |
We
reserves the right to change products or specifications without
notice.
|
