High Definition CCTV Solutions
|
AV2100M
∙ 2 Mega
pixel IP-camera sensitive to 0.1 lux @ F1.4
∙ Frame Rate 24 fps @ Resolution 1,600 x 1,200
The AV-2100 offers cinema compatuble high frame rates to
allow real time high definition digital video
surveillance with 6 times the resolution of the best
analog survveillance cameras.
|
 |
One of the latest additions
to MegaVideo™ product line, the AV2100 leverages proprietary
patent-pending technology and alleviates the cost and frame rate
shortcomings associated with multi-megapixel video surveillance.

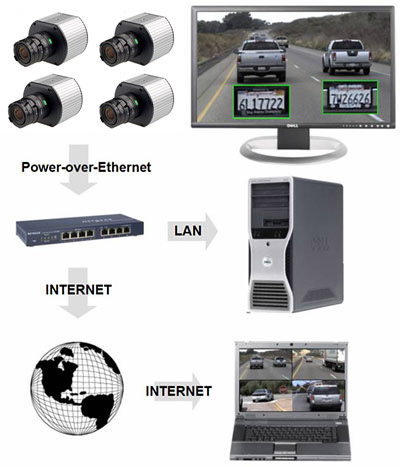

The AV2100 supports compliant Power-over-Ethernet (POE) and
auto-iris control functionality. The camera delivers full motion
HDTV progressive scan resolution and is prices comparable to
analog video cameras.
The world's fastest IP-video system from Arecont Vision are
based on proprietary massively-parallel MegaVideo™ technology
and take advantage of unique functionality unavailable with
analog cameras.
AV2100 surveillance system has the ability to zoom after the
event from high resolution digital archives and the simultaneous
viewing of zoomed and full field of view images.

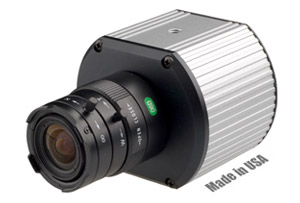

AV2100M Camera
Specification
|
Imaging
-
2 Megapixel CMOS Image
Sensor
-
1600(H) x 1200(V) pixel
array
-
˝” optical format
-
4.2 µm pixel pitch
-
Bayer mosaic RGB filter
-
Sensitivity 0.1 lux @
F1.4
-
Dynamic Range 60 dB
-
Maximum SNR 45 dB
Data Transmission
-
Data Rate up to 45Mbps
-
Video Frame Rate up to
24 fps @ 1600 x1200
-
Motion JPEG with 22
levels of quality
-
TFTP Transmission
Protocol
-
100Base-TX Ethernet
Network Interface
Programmability
-
Auto Exposure (AE) and
Gain Control (AGC) >120dB
-
Auto Backlight
Compensation
-
Auto Multi-Matrix White
Balance
-
50/60Hz selectable
Flicker Control
-
Electronic Zoom, Pan &
Tilt (PTZ)
-
Electronic Image
Rotation - up-side down image turn (mirror)
-
Resolution windowing
down to 32x32 pixels window
-
Programmable Motion
Blurring Control for Low-Light Mode
-
Programmable
Resolution, Brightness, Saturation, Gamma,
Sharpness, Tint
-
Picture-In-Picture:
Simultaneous delivery of full field of view and
zoomed images
|
 |
|
Electrical
-
Power over Ethernet
(POE) or DC Input
-
Compatible with IEEE
802.3af POE equipment
-
9V – 12VDC (2.1mm x
5.5mm, center positive)
-
Power Consumption 4
Watts maximum
Regulatory Approvals
-
FCC Part 15, Class A
-
CE compliant
Mechanical
Environmental
-
Operating Temperature 0°C
to +50°C
-
Storage Temperature -20°C
to +60°C
-
Humidity 0% to 90% (non
condensing)
|
 |
We
reserves the right to change products or specifications without
notice.
|
