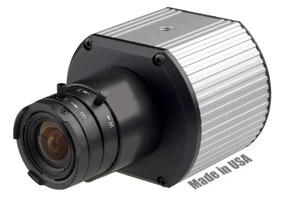

AV1300M

∙ 1.3 Mpixel IP-camera sensitive to 0.1 lux @ F1.4
∙  Frame Rate 30 fps @ Resolution 1,280 x 1,024

The AV-1300 offers cinema compatible high frame rates to allow real time high resolution digital video surveillance with 4 times the resolution of the best analog surveillance cameras.

Imaging

• 1.3 Megapixel CMOS Image Sensor

• 1280(H) x 1024(V) pixel array

• ½” optical format

• 4.2 µm pixel pitch

• Bayer mosaic RGB filter

• Sensitivity 0.1 lux @ F1.4

• Dynamic Range 60 dB

• Maximum SNR 45 dB

Data Transmission

• Data Rate up to 45Mbps

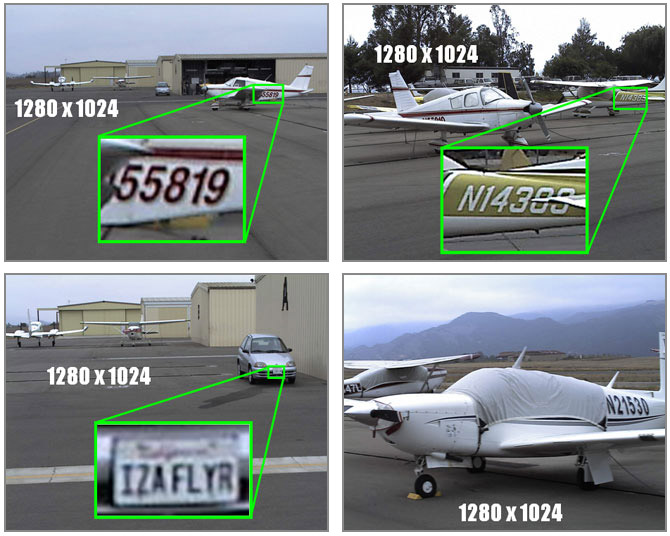

• Video Frame Rate up to 30 fps @ 1280x1024

• Motion JPEG with 22 levels of quality

• TFTP Transmission Protocol

• 100Base-TX Ethernet Network Interface

Programmability

• Auto Exposure (AE) and Gain Control (AGC) >120dB

• Auto Backlight Compensation

• Auto Multi-Matrix White Balance

• 50/60Hz selectable Flicker Control

• Electronic Zoom, Pan & Tilt (PTZ)

• Electronic Image Rotation - up-side down image turn (mirror)

• Resolution windowing down to 32x32 pixels window

• Programmable Motion Blurring Control for Low-Light Mode

• Programmable Resolution, Brightness, Saturation, Gamma, Sharpness, Tint

• Picture-In-Picture: Simultaneous delivery of full field of view and zoomed images

Electrical

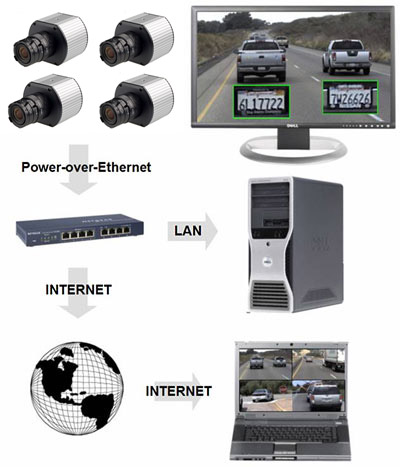

• Power over Ethernet (POE) or DC Input

• Compatible with IEEE 802.3af POE equipment

• 9V – 12VDC (2.1mm x 5.5mm, center positive)

• Power Consumption 4 Watts maximum

Regulatory Approvals

• FCC Part 15, Class A

• CE compliant

Mechanical

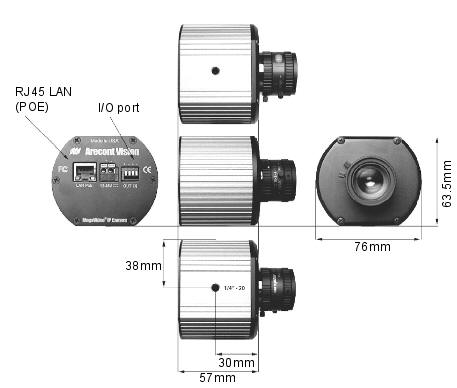

• 57W x 63.5H x 76D mm (w/o lens)

• 450 grams (w/o lens)

Environmental

• Operating Temperature 0°C to +50°C

• Storage Temperature -20°C to +60°C

• Humidity 0% to 90% (non condensing)
