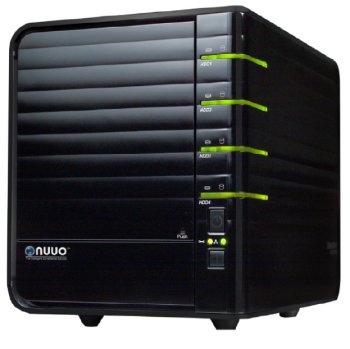

NUUO NAS NVRmini
Nmini(re).jpg)
Specification
| Model |
NV-2040 |
NV-4080 |
NV-4160
|
| Recording Camera |
1-4 |
1-8 |
1-16 |
| Number of Drives |
2xSATA II |
4xSATA II |
4xSATA II |
| RAID Level |
RAID 0,1 |
RAID 0, 1, 5, 10 |
RAID 0, 1, 5, 10 |
| I/O Interface |
1xUSB 2.0 (for UPS) |
2xUSB 2.0 (for UPS) |
2xUSB 2.0 (for UPS) |
| LAN Transmission Speed |
10/100/1000 Mbps (RJ45) |
10/100/1000 Mbps (RJ45) |
10/100/1000 Mbps (RJ45) |
| Dimension |
92.0 x 145.2 x 213.2 mm |
188.2 x 152.5 x 227.6 mm |
188.2 x 152.5 x 227.6 mm |
| Temperature |
Operating: 5°C to 35°C |
| Humidity |
Operating: 10% - 85% |
| Compression Format |
MPEG-4, M-JPEG, H264
(Depend on IP cam) |
| Recording Performance |
Up to 120 fps (NTSC)/100 fps (PAL) at
D1 |
Up to 240 fps (NTSC)/200 fps (PAL) at
D1 |
Total bitrate: 22Mbps |
| Remote PC CPU |
Pentium 4 - 2.4 GHz |
Pentium 4 - 2.8 GHz |
Pentium 4 - 2.8 GHz |
| Remote PC RAM |
512 MB |
| User Interface |
HTTP Web browser -
Internet Explorer 6 or later / NUUO Client Application
Program |
| Recording Type |
Continuous record, Record
by schedule, Manual record, Event trigger record,
Digital input trigger record, |
| Remote Live View Control |
Live view, Preset/go, PTZ
functions, Remote I/O, Snapshot |
| Audio & Video Recording |
Audio & video recording
in synchronization |
| Smart Search |
General motion, Missing
object, Foreign object, Lose focus, Camera occlusion |
| OS Supported |
Windows
2000/XP/2003/Vista |
| Playback Channel |
4 |
8 |
4 |
| Remote Live View connections |
Live view maximum 16
connections at the same time |
| IP camera Brand Support |
ACTi, ArecontVision,
Axis, Cisco, D-link, IQinVision, LevelOne, Lumenera,
Linksys, Mobotix, Panasonic, Sony, Vivotek, Zavio |
|
|
